CENTRIFUGE |
|
| Model |
FTD 36� |
| Size |
36" |
| Type |
Four Point Suspension Manual Top Discharge |
| Inertia Plate |
Heavy Inertia plate |
| Anti vibration Mounts |
4 Point mounting |
| Basket Dia |
900MM |
| Basket Depth |
425MM |
| Filtration Area |
1.2 |
| Rated charge in Basket |
140 Ltrs |
| Basket Revolution RPM |
1000 |
| |
Material of Construction |
S.S.304 |
| |
DRIVE |
|
| |
Motor |
7.5H.P. T.E.F.C Crompton make |
| |
Transmission |
Mechanical Clutch pulley |
| |
Full Body Opening |
For easy cleaning. The outer body of the centrifuge hinges open using Pneumatic or Hydraulic. |
| |
|
|
 |
CENTRIFUGE |
|
| Model |
:SS-36 |
| Size |
:36 " |
| Type |
:Manual Top Discharge |
| Basket Dia |
:900mm |
| Basket Depth |
:425mm |
| Filteration Area |
:1.2 M2
|
| |
Rated Charge in Basket |
:140 Ltrs. |
| |
Material of Construction |
:S.S. 304 |
| |
Motor |
:7.5 H.P. T.E.F.CMotor |
| |
Speed |
:1440 RPM |
| |
Basket Speed |
:1000 RPM |
| |
The Centrifuge is a sturdy three point suspension under driven centrifuge. |
| |
|
|
 |
CENTRIFUGE |
|
| Model |
:SS-24 |
| Size |
:24" |
| Type |
:Manual Top Discharge |
| Basket Dia |
:600mm |
| Basket Depth |
:300 mm |
| Filteration Area |
:0.56 M2
|
| |
Rated Charge in Basket |
:140 Ltrs. |
| |
Material of Construction |
:S.S. 304 |
| |
Motor |
:3 H.P. T.E.F.CMotor |
| |
Speed |
:1440 RPM |
| |
Basket Speed |
:1000 RPM |
| |
The Centrifuge is a sturdy three point suspension under driven centrifuge. |
| |
|
|
 |

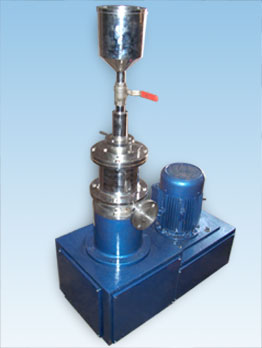

Colloid Mill |
|
| Capacity |
50-350Ltrs P/Hrs |
| Type of Mill |
vartical Type |
| Outer Body |
S.S. 316 |
| Rotor |
S.S.316 |
| Starter |
S.S.316 |
| Starte |
Adjustable arrangement |
| Rotor Size |
4" x 5" |
| |
Motor |
7.5 H.P. Make Cromption |
| |
|
1440 R.P.M |
| |
Motor Make |
Crompton |
| |
Complete Coloid Mill Mounted on M.S. Stand |
| |
|
|
 |
Sigma Mixer Lab Model |
| Model |
SSL 05 |
| Capacity |
05 Ltrs |
| Material of Construction |
S.S. 316 |
| Motor |
2 H.P |
| Motor Make |
Crompton |
| |
|
| |
|
|
 |
Sigma Mixer |
| Total Capacity |
:50 Litres. |
| Material of Construction Shell |
:S.S. 304 Shell Thickness 5mm |
| Top End |
:5mm thick |
| Jacket |
:M.S. Thickness 5mm |
| Size |
:15" x 15" x15" height. |
| Tilting |
:Tilting Arrangement will be Provided |
| |
Top Cover |
:S.S.304 quality with Handle. |
| |
Blade |
:Sigma Blade Z type. Material of Construction S.S. 304 quality. |
| |
Stuffing Box |
:Teflon Rope |
| |
Bearing Housing |
:With Bearing . Ball Bearing |
| |
Gland Pusher |
:With Gunmetal Bush. |
| |
|
|
 |
Sigma Mixer |
| Total Capacity |
100 Litres. |
| Material of Construction Shell |
S.S. 304 Shell Thickness 5mm |
| Top End |
5mm thick |
| Jacket |
M.S. Thickness 5mm |
| Size |
22" x 20 " x21" height. |
| Tilting |
Tilting Arrangement will be Provided |
| |
Top Cover |
S.S.304 quality with Handle. |
| |
Blade |
Sigma Blade Z type. Material of Construction S.S. 304 quality. |
| |
Stuffing Box |
:Teflon Rope |
| |
Bearing Housing |
:With Bearing . Ball Bearing |
| |
Gland Pusher |
:With Gunmetal Bush. |
| |
|
|
