| S.S. Chemical Equipments Industries introuduces the most sturdy, heavy duty SIGMA MIXER for
trouble free long term operation for various application like mixing, kneading,
grinding, dispersion, drying etc. |
| |
| Our SIGMA MIXERS have application to process Viscous to highly Viscous
material in various industries viz. Adhesives, Broke lining, Chemical, Confectionery,
Carbon Black, Ceramic, Dyes & Pigments, Food Products, Fibre Glass, Grease,
Lead Storage Battery, Megnetic Tape Coatings, Paint, Polymers Plastic, Putties,
Plastic, Pharmaceuticals, Printing ink, Resin, Rubber, Soap & Detergent etc. |
| |
|
| CONSTRUCTION |

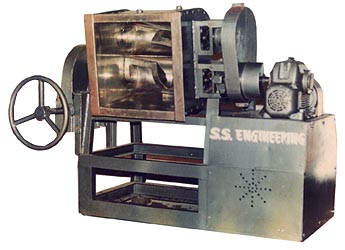

SIGMA MIXER consist of "W" shaped container made of either Mild Steel or
Stainless Steel 304 or 316 with jacket of Carbon Steel covering two side for heating
or cooling application & dust free cover to get Vacuum if desired or normal cover.
The mixing elements (Blades) are of Sigma type Steel casted and duly finished two
in number which contra rotate inward fitted at close or specified clearance with the
container to give thorough and uniform mixing. There is a Gland pusher of Gun Metal Bush which ensure minimal friction and extend the life of mixing elements (Blades) Shaft.
|
| |
| DRIVE |
The Drive Consists of Motor of type TEFC Or TEFC Flameproof of Specified
HP.1 440 RPM, Reduction Gear Box Of Reputed Make having suitable size and
ratio, Spur Gears, are also provided of adequate size and having machine cut
teeth, between the front and rear blade complete with guard suitable for grease
lubrication. |
| |
| STAND |
| The complete Mixer is Mounted on Steel Fabricated stand of suitable strength to
withstand the vibration and give noise free performance. |
| |
| FEATURES |
| SIGMA MIXER as the name suggests contains mixing element (Blades) of Sigma
type two in number which contrarotates inward to achieve end to end circulation &
thorough & uniform mixing at close or specified clearance with the container. The
mixed product can be easily discharged by tilting the container by hand lever
manually either by system of gears manually operated or motorised. |
|
| |
|
|
| |
|
STANDARD MIXER - DESIGN FEATURES |
| |
|
MODEL |
CAPACITY - LTRS. |
MOTOR HP |
WORKING |
BRIM |
SS-01 |
10 |
15 |
1 |
SS-2.5 |
25 |
40 |
3 |
SS-5 |
50 |
80 |
5 |
SS-7.5 |
75 |
110 |
7.5 |
SS-10 |
100 |
150 |
10 |
SS-15 |
150 |
200 |
15 |
SS-20 |
200 |
300 |
20 |
SS-40 |
400 |
550 |
30 |
SS-50 |
500 |
750 |
40 |
SS-75 |
750 |
1150 |
50 |
SS-100 |
1000 |
1500 |
60 |
SS-150 |
1500 |
2100 |
75 |
SS-200 |
2000 |
2600 |
80 |
SS-300 |
3000 |
3800 |
100 |
|
| |
|
|
| |
|
Sample Applications Of Sigma Mixers |
| |
|
|
|
| - |
|
| - |
Biscuit doughs |
| - |
Butyl rubber |
| - |
Carbon pastes |
| - |
Ceramics |
| - |
Chemicals |
| - |
Chewing gum |
| - |
Crayon and
pencil lead |
| - |
|
| - |
Fiberglass resin doughs |
|
| - |
Food and confectionery products |
| - |
Gaskets and Gland Packings |
| - |
Grinding wheel preparations |
| - |
Hot-Melts |
| - |
Inks and pigment products |
| - |
Marzipan |
| - |
Mastics |
| - |
Metal powders |
| - |
Moulding preparations |
|
| - |
Pencil erasers |
| - |
Pharmaceuticals |
| - |
Plastics |
| - |
Putties |
| - |
Refractories |
| - |
Solid propellants |
| - |
Sugar pastes |
| - |
|
| - |
Silicone rubber |
| - |
Soaps and
detergents |
| - |
Viscous
rubber solutions |
|
|
|
|
|
|
